WAFIOS FMU 1 FMU1

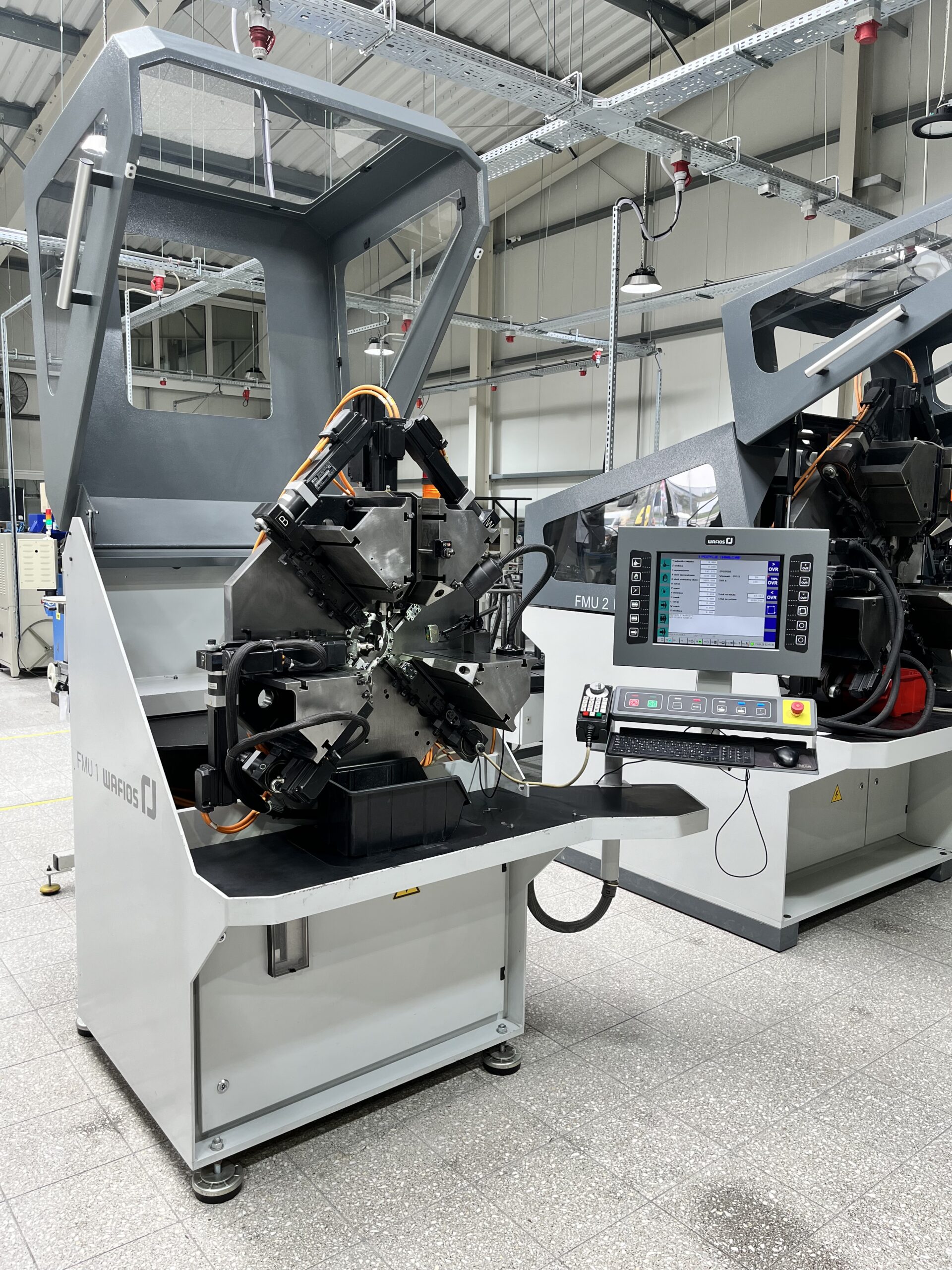

WAFIOS FMU1 CNC Torsion Spring Machine – 2002

Manufacturer: WAFIOS GmbH (Germany)
Model: FMU1
Year of Manufacture: 2002
Serial Number: 2 2608 172

Premium German CNC Spring Forming Machine

Available for immediate sale is a WAFIOS FMU1 CNC Torsion Spring Machine, manufactured in 2002 and built to the exceptional engineering standards for which WAFIOS is recognized worldwide.

Designed for high-speed and high-precision production of torsion springs and complex wire forms, the FMU1 remains one of the most reliable and sought-after machines in the spring manufacturing industry. Its rigid construction, advanced CNC technology and premium European components make it an excellent choice for companies requiring consistent production quality and long-term reliability.

This machine is equipped with Schleicher industrial control technology and Bosch / Indramat servo drives, ensuring precise axis synchronization, excellent repeatability and dependable performance in continuous production.

Technical Data

• Manufacturer: WAFIOS GmbH
• Model: FMU1
• Year: 2001
• Serial Number: 2 2608 172
• Machine Type: CNC Torsion Spring Coiling Machine
• Number of CNC Axes: 12
• Control System: Schleicher
• Servo System: Bosch / Indramat
• Wire Diameter Capacity: 0.4 – 1.6 mm
• Maximum Wire Feed Speed: 100 m/min
• Production Output: up to 150 springs/min (depending on spring design)
• Power Supply: 3 × 400 V / 50 Hz
• Installed Power: approx. 8 kW
• Machine Weight: approx. 1,400 kg

Applications

The machine is suitable for manufacturing:

• Torsion springs
• Double torsion springs
• Precision wire forms
• Automotive springs
• Electrical and electronic components
• Medical wire components
• Consumer goods and appliance springs

Machine Highlights

✔ Premium German engineering

✔ 12 CNC controlled axes

✔ Bosch / Indramat digital servo technology

✔ Schleicher industrial control system

✔ Excellent positioning accuracy

✔ High production speed and repeatability

✔ Heavy-duty industrial machine frame

✔ Reliable operation with low maintenance requirements

✔ Worldwide availability of tooling, spare parts and technical support

About WAFIOS

WAFIOS is internationally recognized as the global benchmark in CNC spring manufacturing technology. Machines from this manufacturer are valued for their exceptional precision, durability and long service life, making them a preferred choice for demanding industrial applications.

The FMU1 model continues to be widely used by spring manufacturers around the world due to its proven reliability, robust construction and strong resale value.

Machine Condition: The machine is in continuous production. All components are replaced as they wear out. Original electronics. No play, leaks, etc. Perfect technical condition. New operating panel based on a standard monitor.

Machine available for inspection under power by appointment. Additional technical information, photographs and videos can be provided upon request. Worldwide loading and shipping can be arranged.
