Mitutoyo PJ300 Profile projector

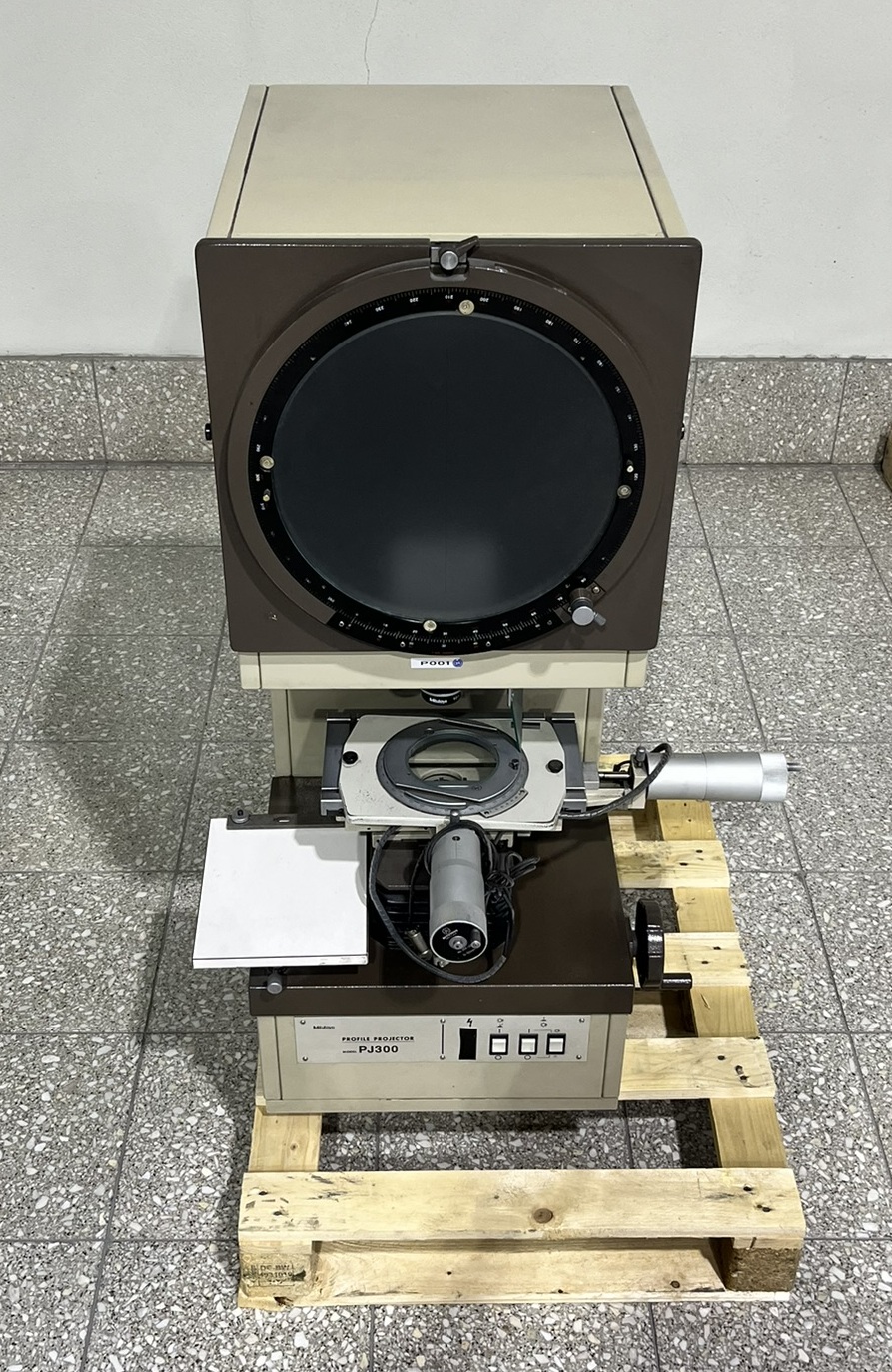

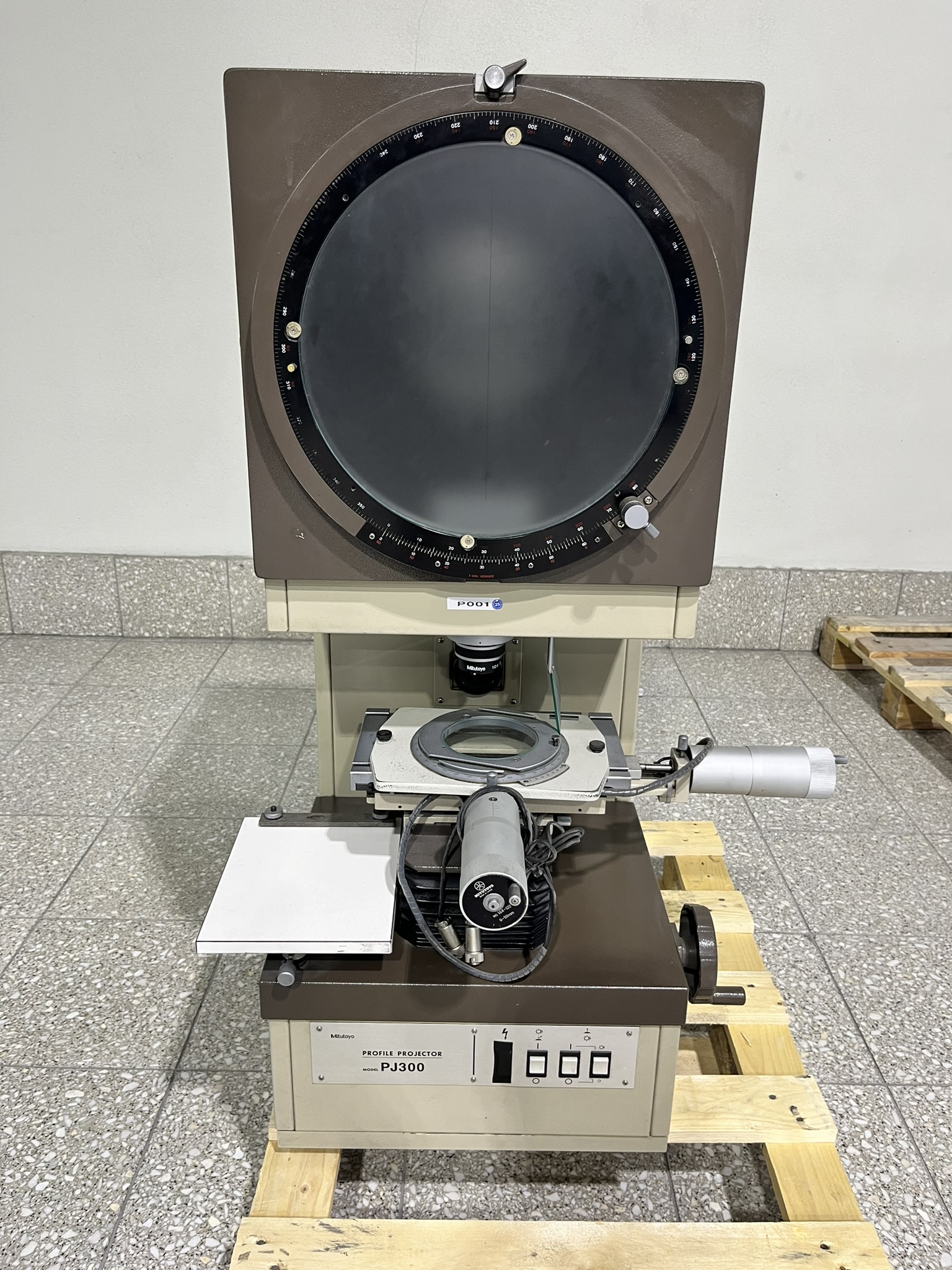

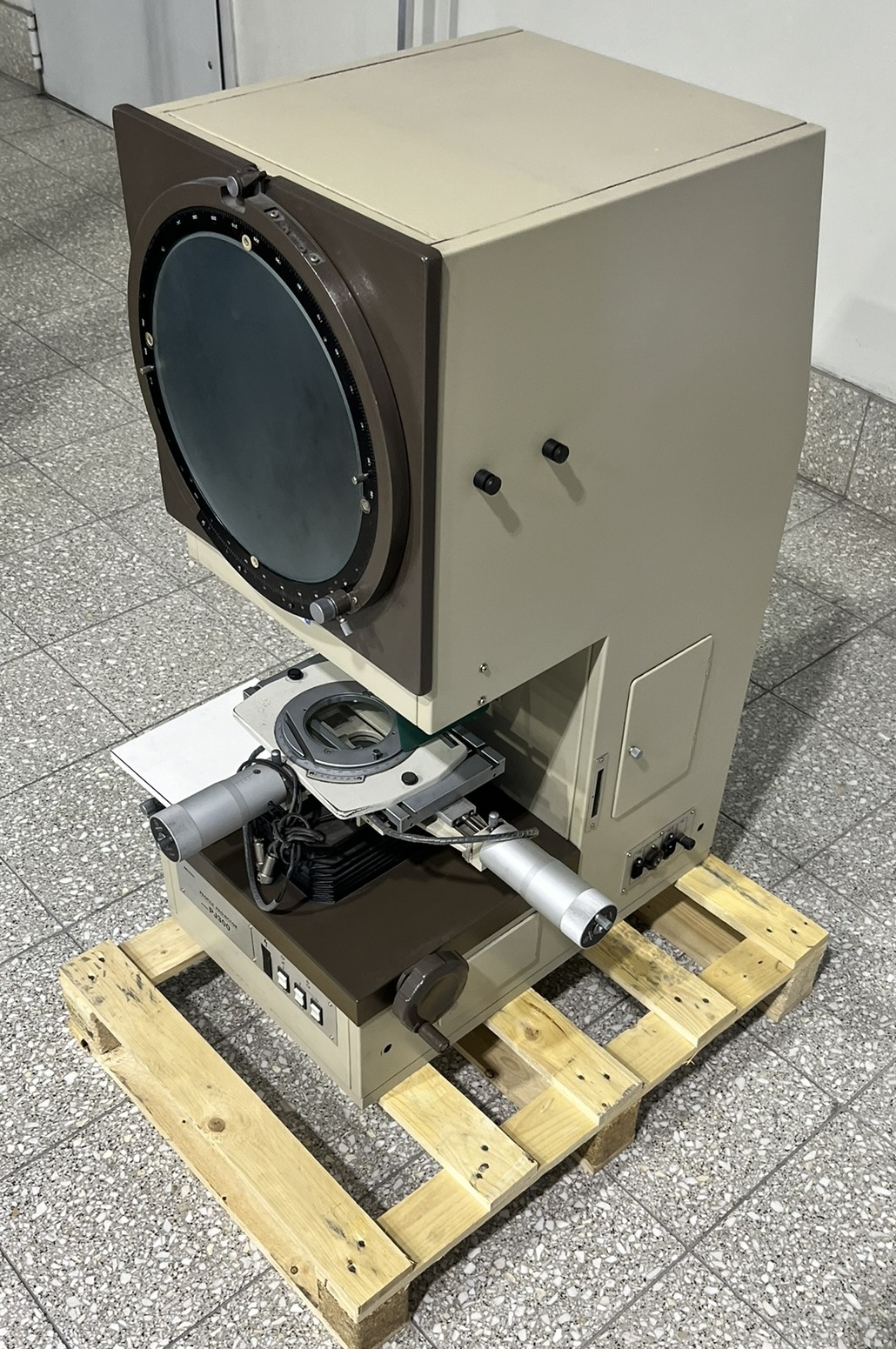

Mitutoyo PJ-300 Profile Projector

Manufacturer: Mitutoyo
Model: PJ-300
Type: Vertical Optical Profile Projector
Country of origin: Japan

The Mitutoyo PJ-300 is a precision optical profile projector designed for accurate non-contact measurement and inspection of mechanical components, tools and precision manufactured parts. Manufactured to the renowned Japanese quality standards, the PJ-300 delivers excellent optical performance, high measurement accuracy and reliable operation in demanding quality control environments.

Equipped with a large projection screen, precision measuring stage and high-quality optical system, the PJ-300 is widely used for dimensional inspection, contour analysis and angle measurement in production facilities, inspection departments and metrology laboratories.

Technical Features

• Vertical optical profile projector
• Large 300 mm projection screen
• High-quality precision optical system
• Suitable for contour and surface illumination
• Precision X-Y measuring stage
• Rotatable projection screen for angle measurements
• Excellent image clarity and measurement repeatability
• Robust industrial construction
• Designed for precision inspection and quality control

Typical Applications

• Precision dimensional inspection
• Tool and die manufacturing
• Automotive industry
• Aerospace industry
• Medical device manufacturing
• Electronics industry
• Quality control laboratories
• Inspection of machined, stamped and formed components

Machine Advantages

• High measurement accuracy
• Non-contact measurement method
• Excellent optical quality
• Reliable Japanese engineering
• Easy operation and fast inspection process
• Durable industrial construction
• Suitable for a wide range of precision components
• Ideal for production and metrology applications

The machine is offered in good overall technical condition and can be inspected under power by prior appointment.

For further technical information, additional photographs or a quotation, please contact us.
